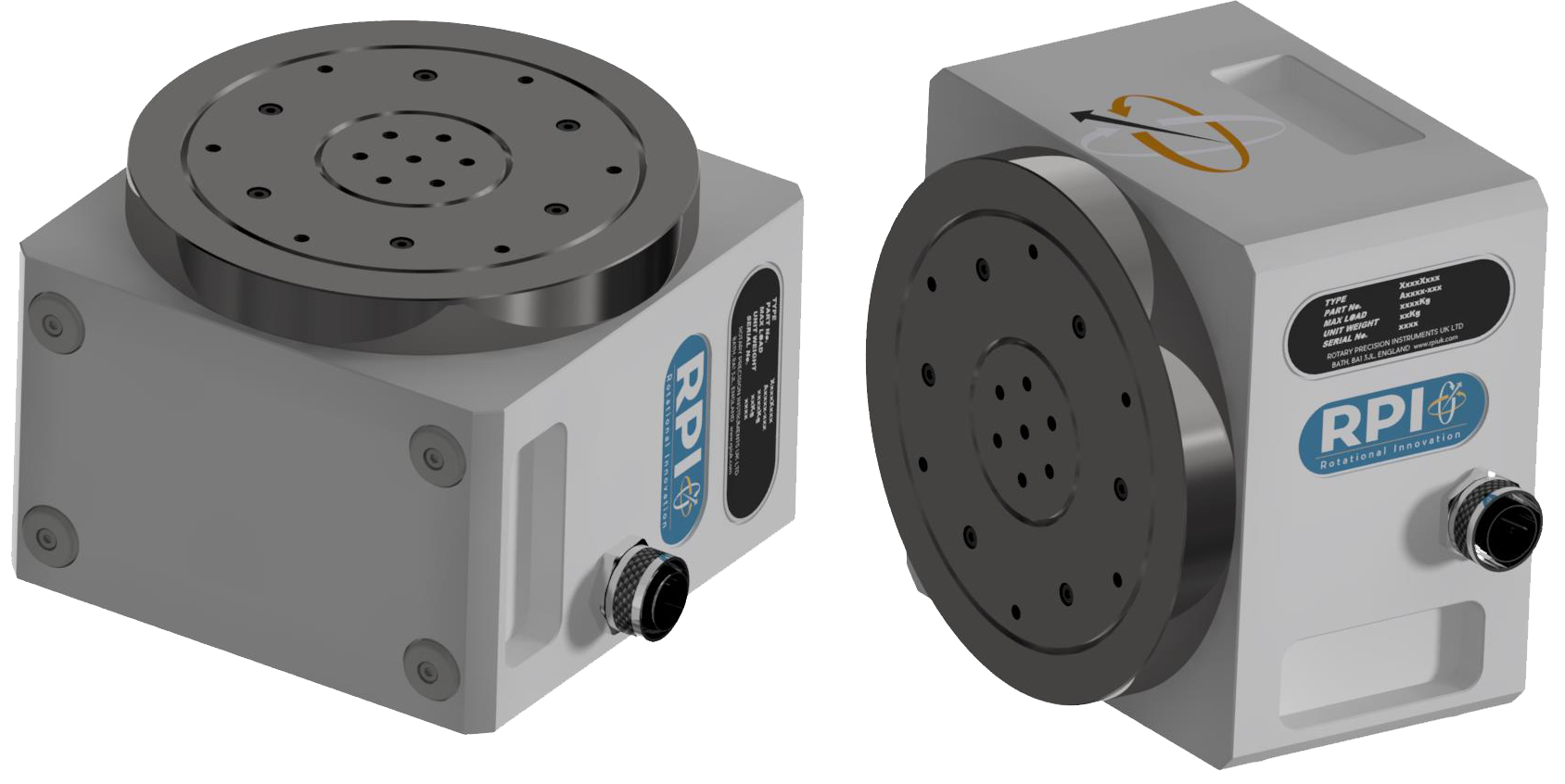

QuadScan
Additional Rotary Axis for high precision co-ordinate measurement machines. Designed for horizontal and vertical applications with zero backlash gearing and a high accuracy angular encoder ensures sensitivity and fine positioning for metrology and precision testing.
- Horizontal or vertical applications
- Table top size Ø100, Ø150 and Ø200 mm
- Load capacities up to 100 kgs
- Tilt moment up to 10 Nm
- Angular accuracy 10 arc seconds
